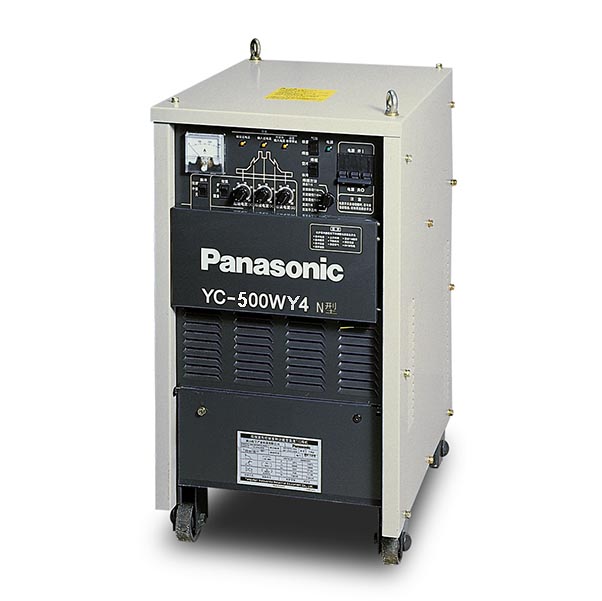

TIG AC/DC YC-500WY4 Welding Machine

SKUmay-han-tig-ac-dc-yc-500wy4

DESCRIPTION

Advanced model ensures high quality welding. Welding modes for various materials.  Mix mode, ac standard / soft / hard mode are available.
Selectable ac output frequency enables welding of different varieties of aluminium.  Ideal for welding hard aluminium and aluminium bronze.
Possible to weld thin plates, thick plates and aluminium alloys.
Welding modes for a wide range of job requirements.
Mix tig welding.
The concentrated arc is ideal for lap welding of thin aluminum plates. Combination of ac and dc tig allows deep penetration and significantly reduces electrode consumption.
All panasonic welding equipments are rohs compliant.  Extension cable up to 40m (one way).
Cleaning width function offers multiple benefits:  when the base metal surface is dirty.  when the base metal oxidation coating is thick.
For welding of aluminum alloys.
For welding of surface processing aluminum, e.g., alumite.
Cleaning width and pulse can be easily modified

TECHNICAL DATA

TECHNICAL DATA YC-300WY4 YC-500WY4
Control model   IGTB Inverter IGTB Inverter
Rated input(kVA) KVA/KW 10.5/9 (TIG DC)



1.5/10(TIG AC)

21.5/19 (TIG DC)



29.5/22.5(TIG AC)

No load voltage – DC stick(V) When there is an electric shock V 14 14
When there is no electrical protection 63 71
No load voltage AC V 63 71
Rated output current DC A 4 – 300 (TIG)



4 – 250 (SMAW )

4 – 500 (TIG)



50 – 400 (SMAW )

Rated output current AC A 10 – 300 (TIG combination, TIG AC standard )



20 – 300 TIG AC hard

10 – 200 TIG AC soft

20 – 500 (TIG combination, TIG AC standard)



40 – 500 TIG AC hard

20 – 330 TIG AC soft

DC Output current V 4 – 400 (TIG)



20 – 400 (SMAW )

10.2 – 22.6 (TIG)



20.8 – 32.6 (SMAW )

AC Output current V 10.4 – 22 TIG combination



10.4 – 21 TIG AC standard

10.8 – 22 TIG AC hard

10.4 – 18 TIG AC soft

10.8 – 30 TIG combination



10.8 – 30 TIG AC standard

22 – 30 TIG AC hard

10.8 – 23 TIG AC soft

Welding pulse % 15 – 85 15 – 85
Up slope time S 0 or 0.1 – 5
Down slope time S 0 or 0.1 – 10
Dimensions mm 380x530x730 440x635x945
Net weight Kg 42 43
